Upon receipt of the goods, you only need to weld the LED lamp based on the paper welding instructions and plug in the 5V usb power supply to display brilliant lighting effects have more than 25 kinds of effects have been built in. The link below is a video of its effects://youtu/8o-z32mRmqA To enable every person to modify the effects, we have created a 3D animation software on the PC computer. In this software, you can use the mouse to light up or turn off each led on the cube. After making the Graphic with the mouse, Set up the coordinates for the movement of the Graphic, the Graphic will move; or, you can also use the mouse to make several 3D Graphic, and then let these Graphic display in sequence, thus forming the effect of 3D animation, which is much simpler than using C language to modify the displayed Graphic can download the 3D software on Google network disk on the link below. https://drivele/file/d/1a62NuU_QtyUHD0oo4XSAAWj_dZoWQHCBAnd the following link is a video of the 3D animation softwares://wwwube/watch?v=tGaJr17tRakPackage include:1, Soldered and tested main board (size: 18*18.5cm) x12, USB download tool x13, USB-DC cable x1 4, Tinned iron wire x 1 5, White electronic line x 1 6, 2mm acrylic strip (used for bending LED anode) x1 7, Foggy highlight square 2*5*7mm Blue LED x600 (As a matter of fact, only 512 LED will be used, but to prevent damage to LED lamps during manufacture, each lamp bead is provided for standby)8, Tool for testing LED x19, Paper welding instructionsDetailed technical parameters:LED: 2*5*7mm square foggy high light LED, length of the LED metal feet about: 2.5cm. MCU: STC12C5A60S2 Driver chip: 74HC573 + APM4953, the horizontal 8 layers are LED anode and the vertical 64 columns are LED cathode.
iCubeSmart 3D LED Cube Transparent Acrylic Case It is Only Applicable to 3D8S-BLUE and 3D8S-MUTIL…
iCubeSmart 3D LED Cube Transparent Acrylic Case It is Only Applicable to 3D8S-BLUE and 3D8S-MUTIL…
$143.99
- [Fun And Enjoyable Project] This is a soldering project for 3D Led cube kit. A 3D matrix made up of 512 blue square LEDs, which can display a lot of colorful dynamic lighting shapes. The size of the finished product is about 18*18.5*20cm. The link below is a video introduction: Https://youtu/Mur4R8sD-UE
- [Used for] It is suitable for diy soldering project, electronic enthusiasts, hands-on soldering learning, electronic classrooms, electronic competition projects, creative lighting, and of course it is also a meaningful gift.

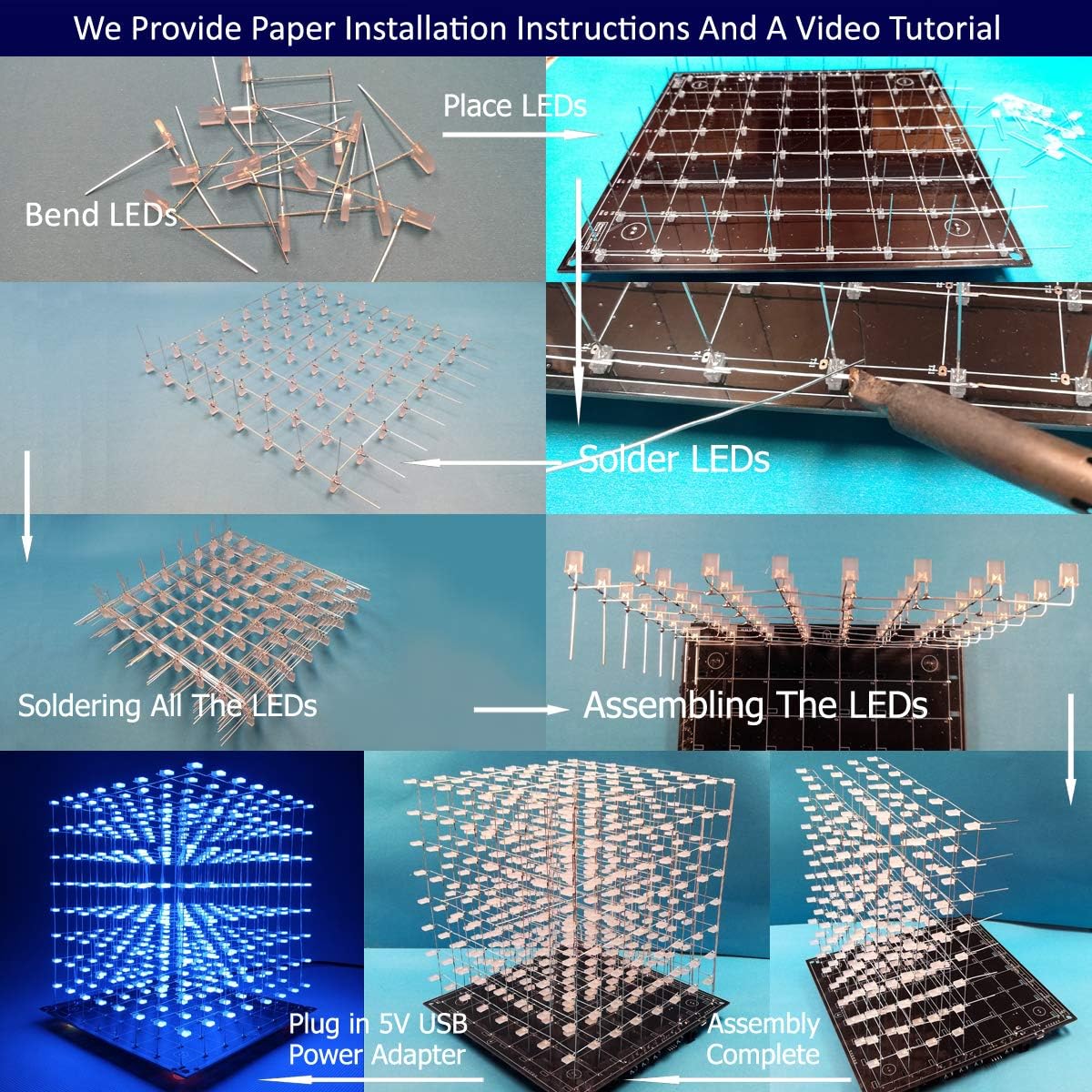

- [It Requires Users To Solder] The PCB main board has been soldered and tested, and users only need to solder the LED. We provide paper welding instructions and a video DIY instructions. There are 64 square holes on the main board to fix the LED and make welding easier. There are 4 keys on the main board to switch animation modes.
- [EFFECTS CAN MODIFIED] More than 20 kinds of brilliant animation effects have been built into the main board of this cube. Users can display the animation after welding and plugging in the USB power supply. Users can also modify the animation displayed through the 3D software provided by us. The following link is the 3D software and instructions: https://drivele/file/d/1a62NuU_QtyUHD0oo4XSAAWj_dZoWQHCB
- [Professional services] iCubeSmart have various sizes of led cube and other electronic DIY products. If you receive the product and do not know how to make it, or the component is broken during production or if you need help to modify the animation, you can leave us a message. We offer life-long technical support services for our DIY products. If you need other products, please search for the brand name: icubesmart.
Additional information
| Weight | 0.38 kg |
|---|---|
| ean | 0779283071907 |
| brand | iCubeSmart |
| dimensions | 22 x 21.2 x 5 cm; 400 Grams |
